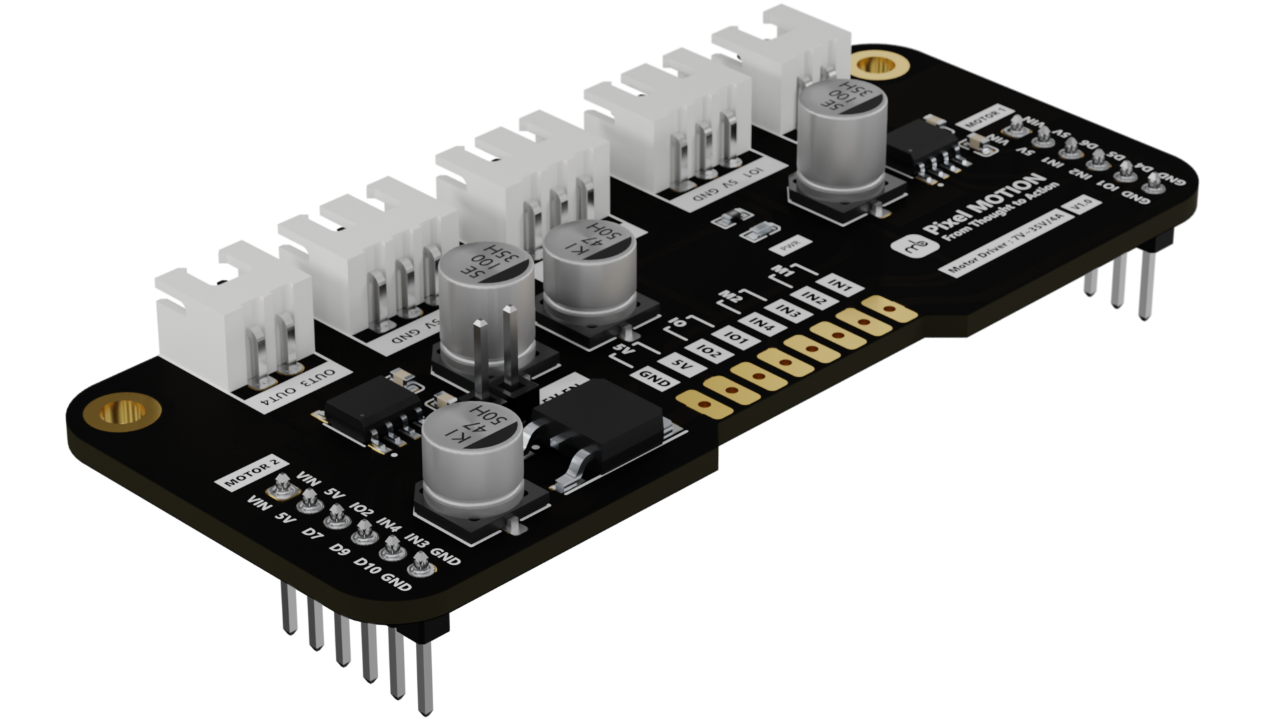

The X-Pixel Motion V1 is a powerful and reliable motor driver module designed to bring your robots to life!
Supporting two DC motors and two standard servo motors, it features smart protection against overcurrent, overheating, and short circuits. With easy-to-use XH connectors and seamless installation on the X-Pixel platform or other hardware, it’s the perfect choice for fun, safe, and creative robotics projects.
Key Features:
Typical Application:
- Robotic
- General Use
Driver:
- Two TI DRV8870DDAR 3.6A Brushed DC Motor Driver (PWM Control)
Power:
- 7v to 35v DC (XH Connector + Pin Header)
- On-Board 5v Regulator
Motor:
- 2 Wheel 3.6A DC Motor Driver (Overcurrent Protection, Thermal Shutdown)
Expansion Connectors:
- 5v Power Out Header
- IO Header
- 2 Servo Motor Connector
Other:
- Power LED
- Motor Status LED
DC Motor 1 Connector
DC Motor 2 Connector
Encoder 1/Servo 1 Connector
Encoder 2/Servo 2 Connector
Power IN/OUT
Key Benefits:
- Wide Power Input Range
- Multiple Expansion Connector: Extensive connectivity to a wide range of boards
